How to craft an ad in Photoshop CC using 3D models

[Rss Bot 1]

Designing in 3D can be a daunting task for anyone used to working solely in two dimensions, but the great potential to open new creative horizons makes it a step well worth taking.

Luckily for beginners, Photoshop CC presents a helpful middle ground that lets you create and edit 3D scenes without needing any real experience in other software.

In this tutorial we will be downloading a 3D model from the Adobe Stock library and using it to create a bespoke advert in Photoshop CC.

01. Select your object model

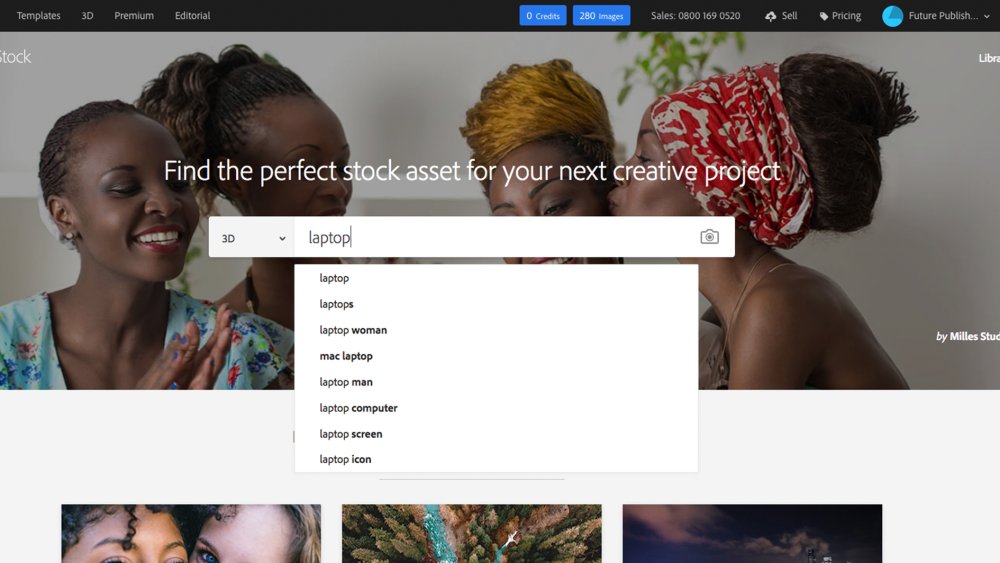

Search the Adobe Stock website for the 3D object you require

3D models allow you to light, manipulate, and freely reposition objects without the need for a real-life photography studio. This is particularly useful for smaller businesses where editable images can be reused multiple times, over a range of marketing material. In this scenario I have imagined an IT company called ‘Techfixa’, looking to create an advert using a 3D laptop model.

Open a web browser and go to the Adobe Stock website (stock.adobe.com), where you can browse the collection of royalty-free 3D models, lights and materials. Select 3D in the drop-down box and search for ‘laptop’. Then hover over the desired image and choose License & Save to My library. This will download a folder containing the model as an obj. file, as well as .png files for textures (we will get on to these later).

02. Place model into document

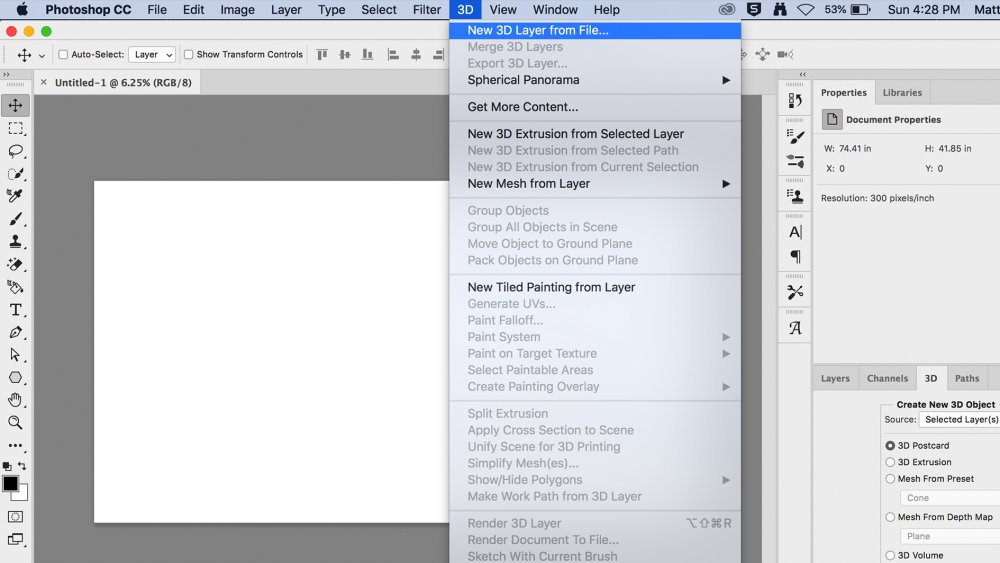

Either drag the .obj file into your canvas or select New 3D Layer from File under the 3D taskbar

All great designs begin with a single step; open Photoshop and create a new document. The dimensions will depend on the intended destination of your design – for this project I used an aspect ratio of 16:9 for use in digital.

You can insert the model into your file by simply dragging the .obj file from the downloaded folder onto your canvas. Alternatively you can open it from within Photoshop, by selecting 3D > New 3D Layer From File and opening the .obj file. This should automatically switch your workspace into 3D mode, but you can also do this manually through Window > Workspace (this will be more important when you want to switch back to Essentials).

03. Create a background

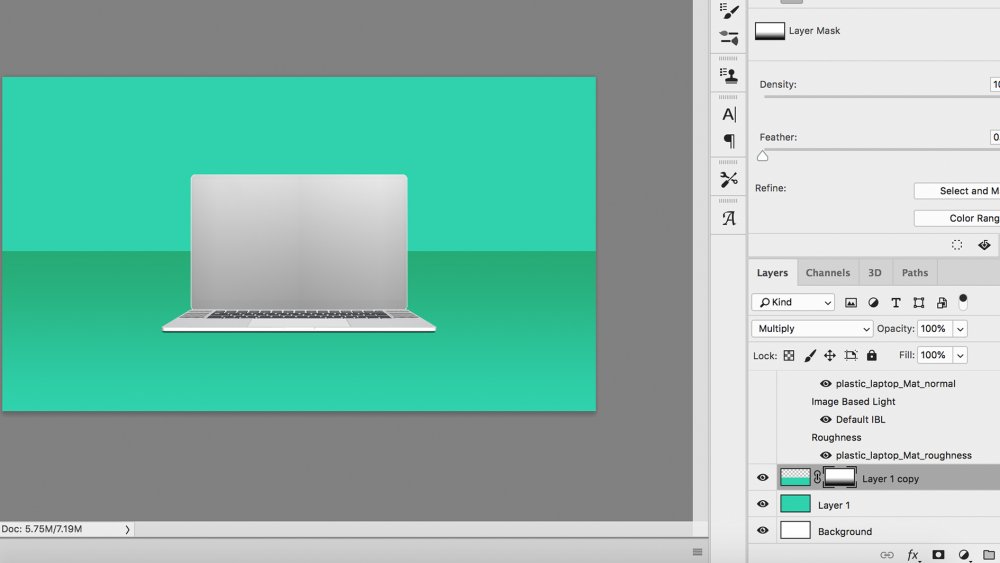

Make a simple horizon by duplicating the background layer, adding a multiply blend, masking and drawing a gradient

Adding a horizon will make it easier to realise the structure of your design and where to position your model. While it is possible to create backgrounds in 3D or integrate models into flat images, I used basic 2D Photoshop tools to create a simple coloured background.

Create a new layer and use the fill tool to colour it turquoise. Duplicate the layer, set it to a ‘multiply’ blend mode, add a mask and use the gradient tool to draw a horizon, from halfway up to the bottom. This is a simple method for making a basic horizon.

04. Add text

Use Photoshop's Character panel to select a typeface and use the kerning option to improve the spacing between letters

Adding text at this stage will give you an idea of how much space will be left for your laptop. Use the Type tool to draw text boxes onto the canvas and add your copy. I employed a combination of AgencyFB and Exo typefaces to adopt a ‘future-techno’ style. The introduction of a black strip at the bottom of the frame helps make the contact information stand out.

05. Position your model

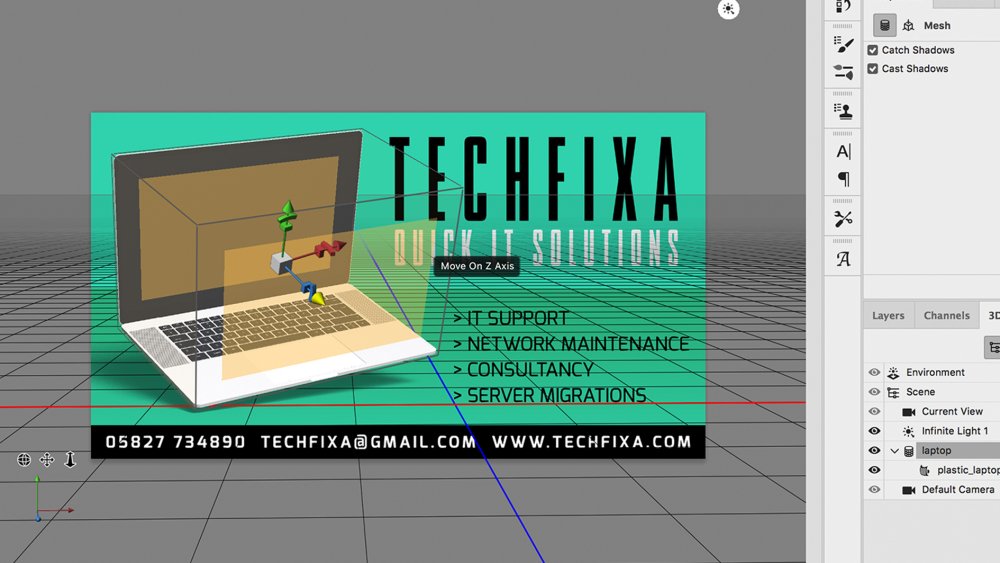

Selecting the right tool can take some getting used to, but eventually it becomes second nature

Using 3D in Photoshop can be a fiddly business, requiring you to constantly switch between different panels (3D, Layers and Properties), but with a little practice it can quickly become like second nature.

Once the laptop layer is selected, a perspective grid should appear and you will have access the 3D tools in the Options bar. You can use these to rotate, move and scale the object, as well as changing the floor and camera view. Click on the laptop in the canvas window and you will see its frame, as well as the axis that allows you to move, rotate and scale. Experiment with the controls, moving the object around the canvas until you are happy with its position – it can always be changed later on.

If you intend on having two laptops in the same scene, you can duplicate the layer and combine the two layers. This will render the two objects together, saving you the effort of consistently altering the settings for each.

06. Customise textures

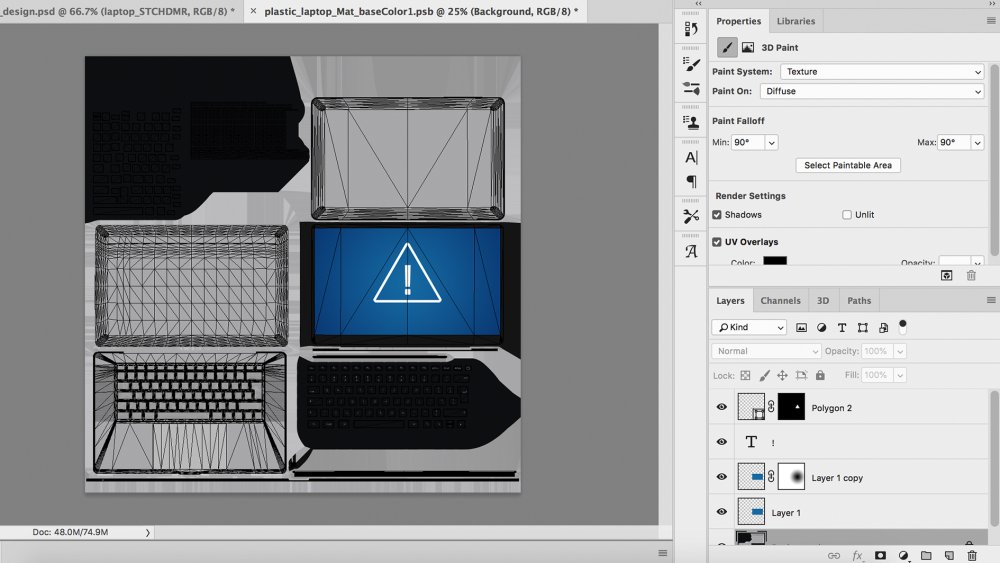

If you are new to 3D, think of the Diffuse material as an unwrapped net, which folds together to form the laptop shape

Click the drop-down arrow on the laptop layer to reveal the textures applied to that object model. Double-clicking on the Diffuse layer ‘plastic_laptop_Mat_baseColor’ will open the texture file in a separate Photoshop document. This is viewed as an unwrapped net, each seam marked by a black line. You can edit the texture in this file and the original document will be updated once saved.

I drew a blue rectangle on a new layer over the area that represents the laptop screen. I then used the shape tool, combined with Select > Modify > Smooth to create a rounded triangle error warning on top of that.

07. Check the lighting

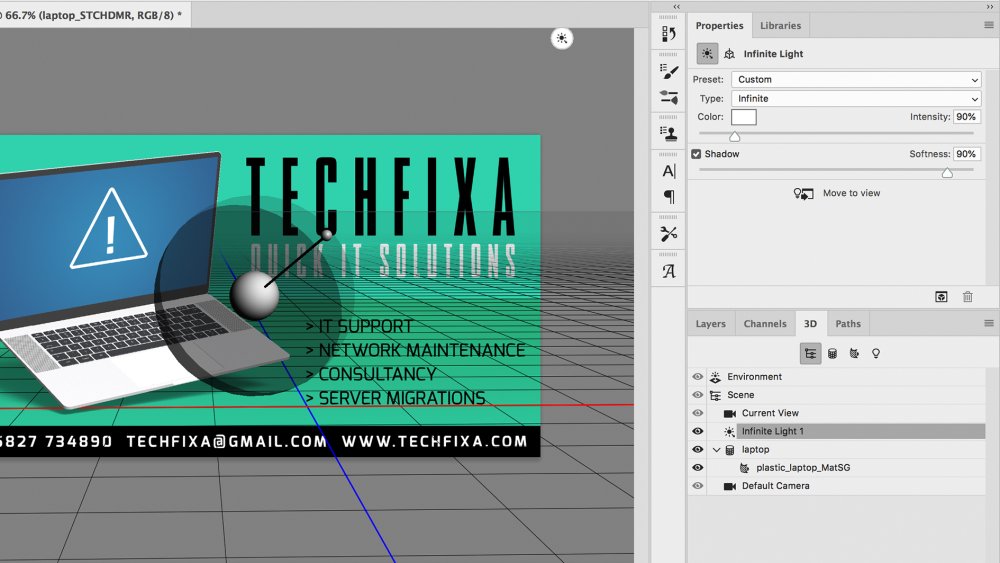

Use the lighting tool to choose direction, while you can control intensity and softness in the Properties panel

Click on the light source, in this case ‘Infinite Light 1’, under the 3D panel. You can alter the lighting settings in the Properties panel, controlling the type, colour and shadow softness. Switching to ‘spot’ or ‘point’ lights can instill a more interesting or dramatic atmosphere to the scene, but in this instance a soft ‘infinite’ lamp suits the purpose. Use the control sphere in the canvas window to adjust the angle of the light source.

08. Render and export

Setting the ray-tracing at 10 will render the image at highest quality, but will take more time

Right click on the 3D layer and render. Don’t be surprised if this takes some time; the longer it takes, the better the final render. You can change the render settings in Preferences > 3D. Finally export the file in whatever format you require, in this case I used RGB jpg for web.

09. Final image

Designing adverts in Photoshop becomes easy with downloaded models from Adobe Stock

Try it yourself with free 3D assets available on Adobe Stock.
