Create and animate SVG Polygons

Recommended Posts

In this tutorial we will be creating a range images out of SVG triangles, and setting up an animated transition from one image to another on click. It’ll look something like the Faces of Power website.

To kick off we are going to start with two arrays: one with the values we’re animating to, and one with the values we’re animating from. Every time a link is clicked, we are going to find the SVG that matches the href of that link and get the points attribute of each of the polygons in that specific SVG.

We’re going to extract all the coordinates in the points attribute, get the fill colour of the polygon and then add these as properties of an object. Then we’ll add all these objects to one of the two arrays: the to array.

We’ll use TweenMax to animate the values of the from array to the values of the to array. When the animation is complete, we’ll set the to array to become the new from array.

On first run, the from array will contain all the points values and all the fill colours of the currently visible polygons.

01. Convert images to polygons

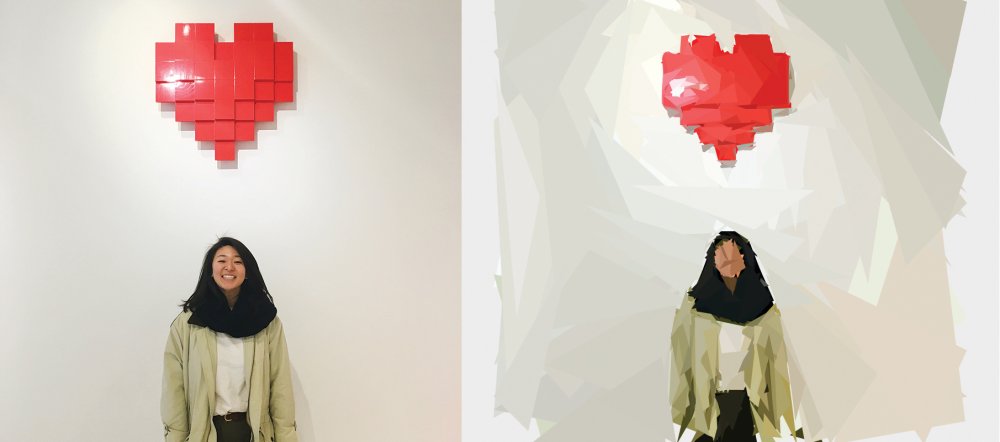

How the image will look before and after being run through Primitive

The first step is to actually make the images. For this I used a tool called Primitive (check out the GitHub repo). The images used in the tutorial are personal images of a few friends.

Run your chosen images through the Primitive utility using the command line:

-n 250 specifies 250 polygons, -m 1 specifies a triangle shape, and -i input.jpg -o output.svg are the input and output. It’s important that all SVGs have the same number of polygons and are the same shape. Output.svg will be a collection of polygons.

02. Paste your SVGs into the HTML

After creating the SVGs paste them into the body of the HTML. Duplicate the first SVG and give one of the duplicates the class .svg-holder

The .svg-holder is going to be the only one that is technically visible; it will be the holder for all the polygons that are animated in and out of it. Give all SVGs except the holder the class hidden and an id with a unique name. This should match the href in the links. The hidden SVGs will be hidden with display: none;. It’s important to make sure the href of each link matches the id of its respective SVG.

Then declare the variables:

03. Extract polygon coordinates

Now we have to run through each of our polygons and get the coordinates in the points attribute. We can do this using regex:

04. Update the polygon arrays

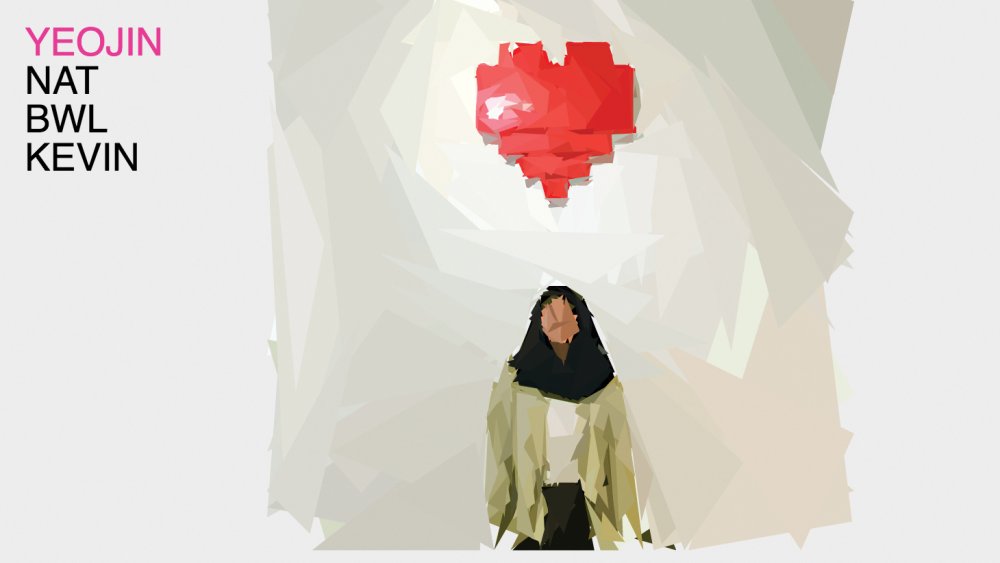

Saved as an SVG, all triangles become elements

Every time a link is clicked, we’re going to run a function that takes the href of the clicked link as an argument and find the matching SVG, get the points values, animate it, and update the from array.

This function calls two other functions – createPolygonPointsObject and animatePolygons.

createPolygonPointsObject converts all the polygon elements into objects that we can animate the values of, and animatePolygons animates the polygons inside .svg-holder.

This uses our getCoordinates function to get all the coordinates in the points attribute and creates an object with each coordinate and the fill. It returns an array of objects. I decided to make them objects because that data type seems to be easier to work with when you are animating a lot of values at once.

05. Animate the polygons

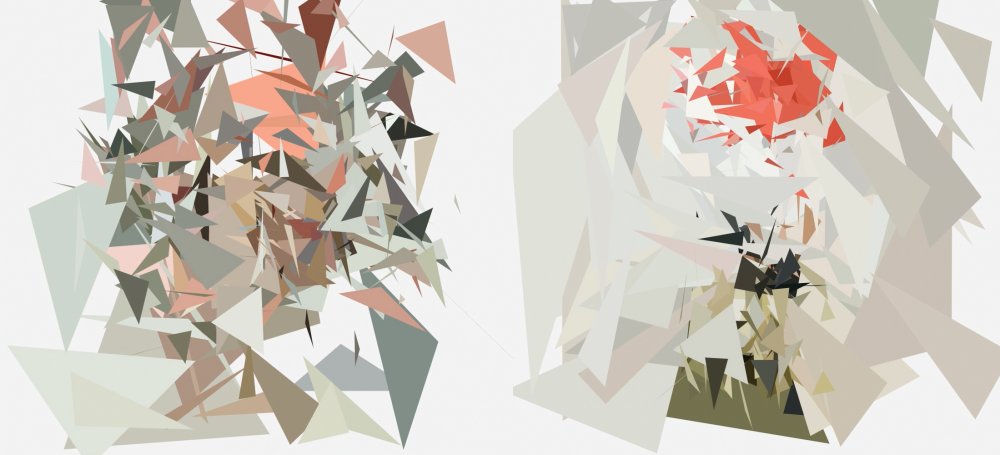

In the final version, the SVG polygons will transition via an animation

Let’s use TweenMax to animate the polygons.

On every frame of the animation, this loop animates the points attribute of the currently visible polygons in .svg-holder to the new values set above. The onUpdate method in TweenMax.to is called every time the animation updates, so here it’ll get run on every change in the values of obj.one, obj.two, obj.three, and so on. This way, the points values animate and the shape morphs to have different coordinates.

Next we can animate the fill. For each polygon in .svg-holder, set the fill to the fill in the toPolygonArray that is in the same index.

Now the polygons will animate their coordinates and their fill colours as expected.
