Bringing 3D art to life using ZBrush and Maya is a process involving a dozen different disciplines, from sculpting all the way to rendering. Being able to achieve the best result on every single detail certainly takes a lot of time. But, from my experience, it has always been an appreciated quality and ultimately helps you become a better artist.

With this 3D portrait of Peter Dinklage playing Tyrion Lannister (from Game of Thrones), I tried to capture not only the look of the actor, but his personality, expressions, emotions and, of course, all those details that usually end up being sacrificed just because it takes too much time to create them. This includes elements such as the rings and the jacket pattern.

In this tutorial I’ll provide an overview of the creation of the image and the software I used. I’ll show you how to solve some common issues and I hope you’ll find it interesting, helpful, as well as productive. If you have questions about a specific matter, follow me on my ArtStation page.

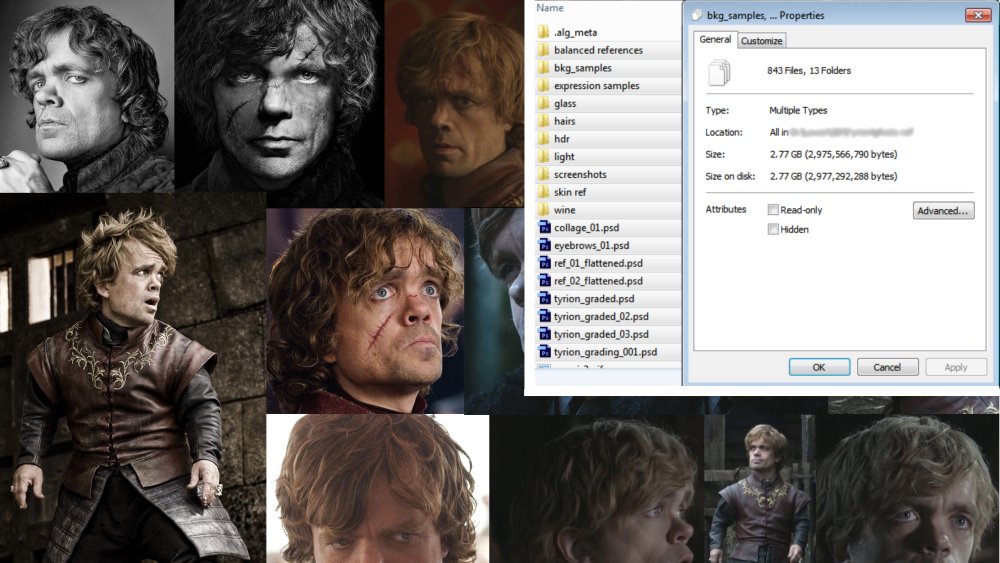

01. Find references

Draw upon existing characters for inspiration

Personally, before jumping into ZBrush, I love spending time finding references to get ideas about the pose I want to give my character. This is important for two reasons: we are probably working with a limited selection of resources, and depending on the quality and number of photos we find online, we could settle on an initial idea for the pose and the camera angle.

02. Sculpt the head

Use layers as you sculpt to compare stages as you work

When you sculpt the head, I’d say to start with a sphere and sculpt on it. Every once in a while use the DynaMesh tool to rearrange your mesh and update your sculpture. When you obtain a decent block-out with no details, it is a good time to make a rough retopo and start subdividing it.

From now on, I would work on different sculpting layers in order to work individually on wrinkles, skin pores and volume definition, or even just to be able to see the difference a specific area makes to the image by switching the layer on and off.

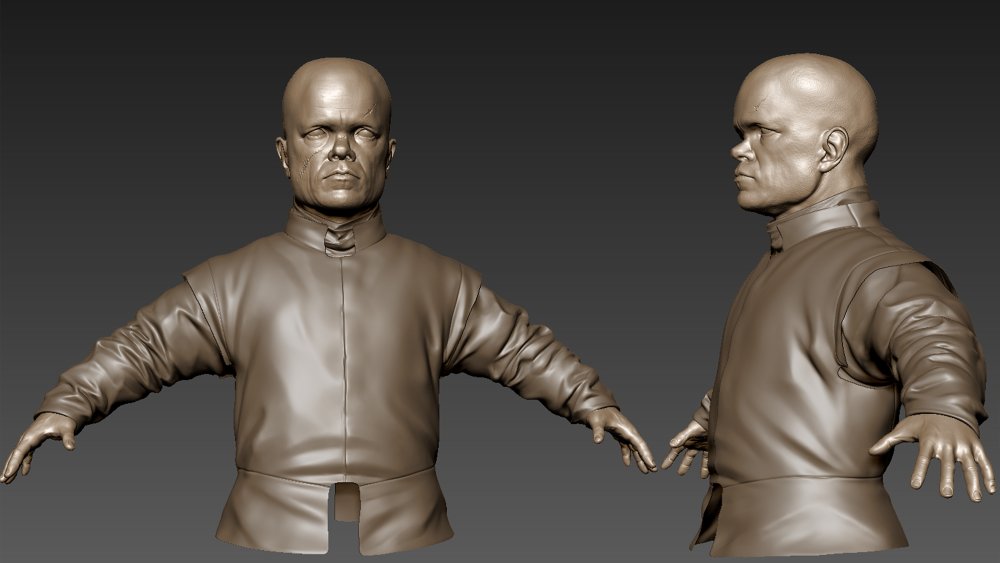

03. Create the body

T-pose model for sculpting clothing

For this particular asset, I sculpted the jacket directly, instead of creating his naked body first. Because of the stiffness of the fabric, I thought it was not worth using Marvelous Designer, this time at least. I sculpted a rough model, focussing only on the main folds.

For the initial T-pose model, the jacket was entirely polygonal (over 200 millions polys), but that was too heavy for this render. The final pattern was obtained via texturing. The T-pose render is on my ArtStation page.

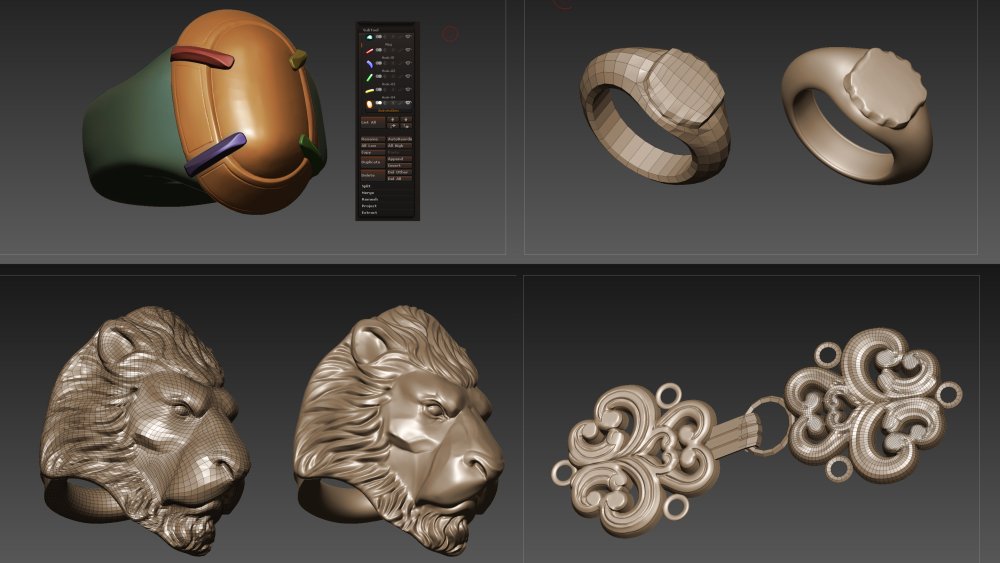

04. Sculpt the rings

Objects created using Maya and ZBrush

I sculpted the rings in ZBrush, one at a time. For the ruby ring, the metal material should be separate from the gem. This will help you when rendering out the ruby’s refraction. I created one of the hooks covering the ruby, duplicated it three times and placed the copies on each side of the ring. The jacket buttons were modelled in Maya and detailed in ZBrush.

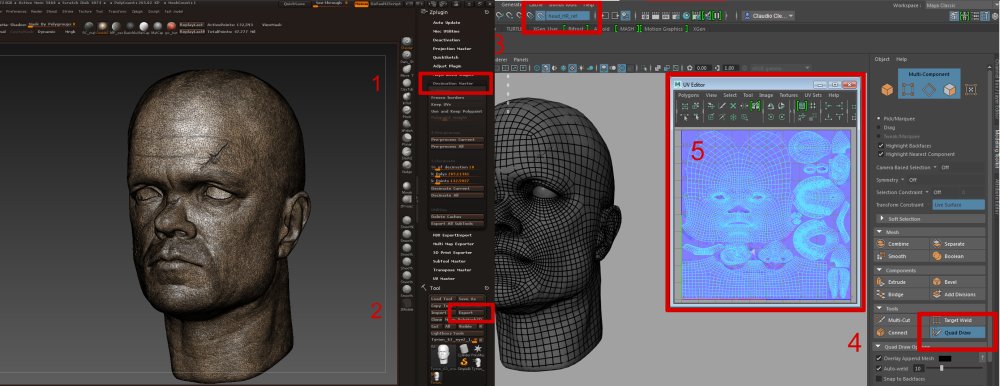

05. Retopology in Maya

Optimise and export in readiness for the retopology process

After finishing the high-res sculpture (with no hairs), I optimised it with Decimation Master, from the Zplugin palette, and exported it in Maya to retopologise it. In Maya, make the decimated high-res mesh live and, in Modeling Tool Kit, activate the Quad Draw tool.

From now on, you’ll be able to create new topology directly on top of the high-res mesh. Once I created my final meshes for the head, jacket, buttons, hands, and rings, I spent some time creating the UVs for each part of it.

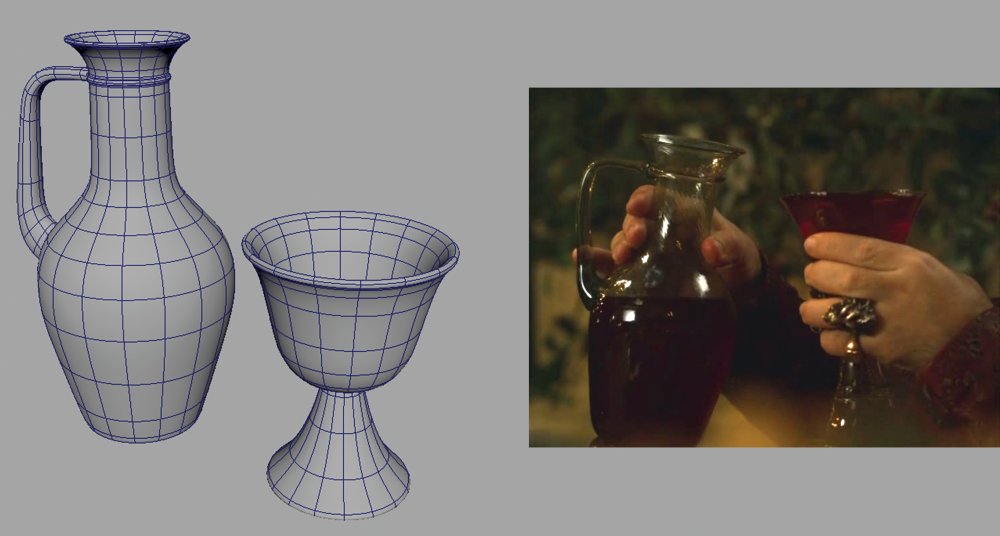

06. Flask and glass modelling

Modelling the tableware with reference to photographs

After the asset retopo, now is the point where I decided to start modelling the glass and the flask in Maya, according to my photo references. Then I exported everything to ZBrush for the posing. These props will be used with our final character in order to create a sense of narrative – and to give our character a sense of personality – in the final image.

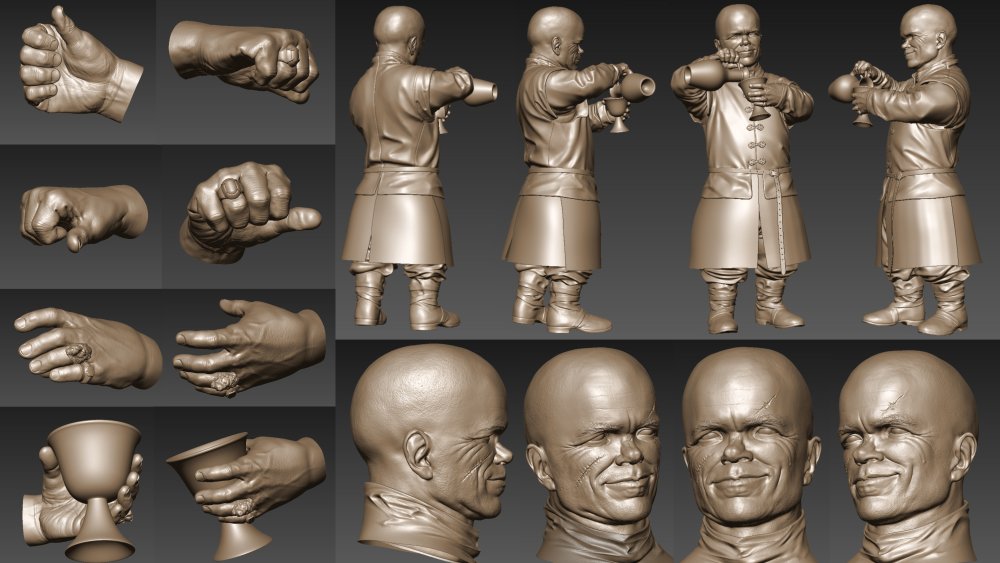

07. Pose the asset

Subdivided meshes reflect changes to both hi-res and low-res

I usually prefer to project my high-res sculpture on a subdivided version of my retopo meshes. This way, whatever adjustment I make on my high-res sculpture, I’ll be updating my low-res mesh at the same time. At this point, using the Transpose Master, I force my asset into pose. After that, I’ll have to re-tweak clothes wrinkles and the skin on the hands and face.

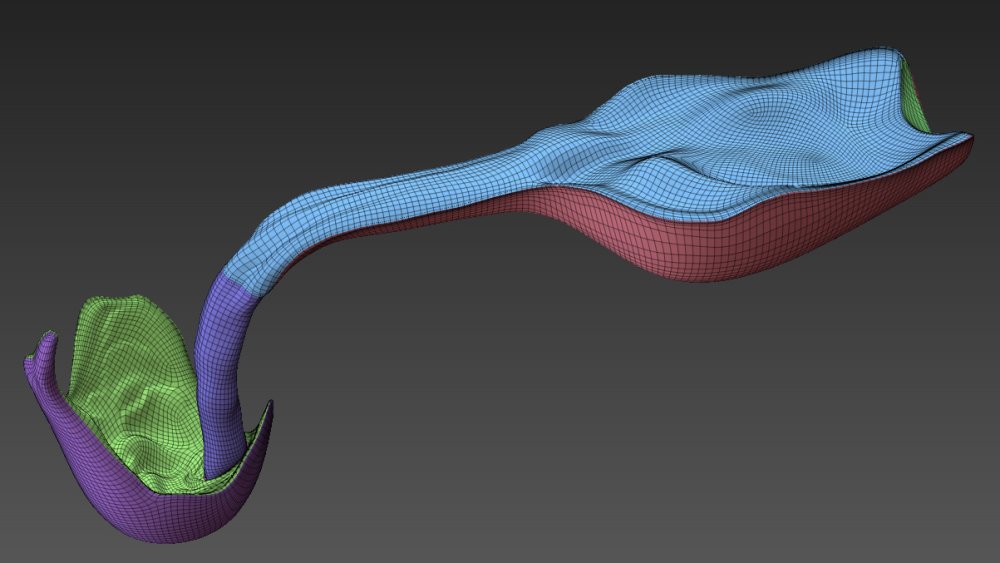

08. Wine sculpting

Creating the liquid sculpture that will become the wine

After posing the asset, and having both the flask and the glass in position, I sculpted the wine in ZBrush, starting with a sphere and using DynaMesh often, until I obtained a decent rough shape. I divided it into some polygroups in order to split the side shape, and connected it to the flask, the glass, and the top surface, where I wanted the wine to be wavy. At that point I used ZRemesher to achieve my final mesh, and then subdivided it in order to add some more detail.

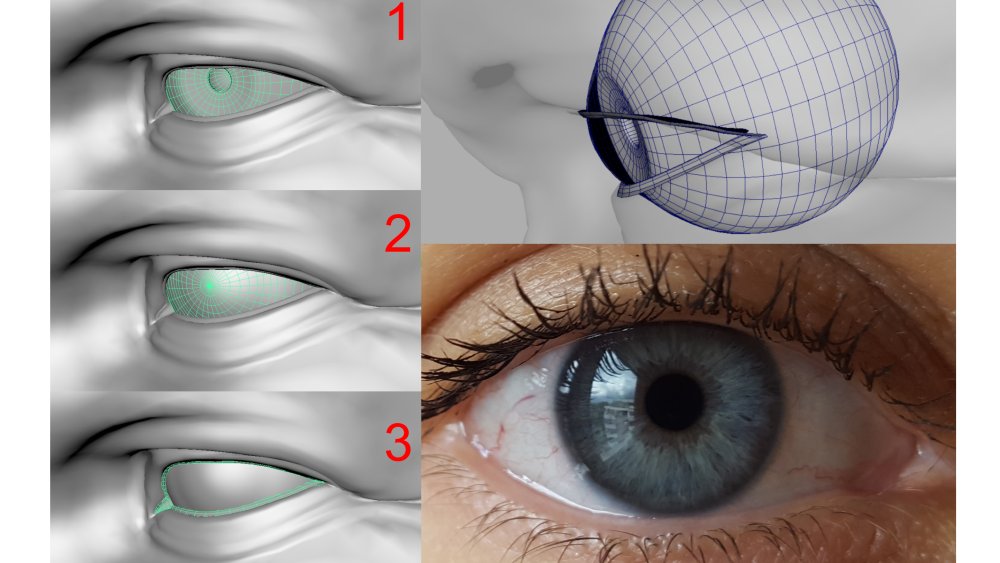

09. Eyeballs mesh setting

Focus on eye detail with separate meshes

I split the eyeballs in three parts: 1) the iris with the sclera, 2) the cornea with the thin wet layer on top of the eye, 3) the meniscus. Having three meshes helped me obtain the most realistic material in Marmoset. The iris has its own roughness but, without having a second mesh for the cornea, that roughness would be visible in the reflection highlight, which would be wrong.

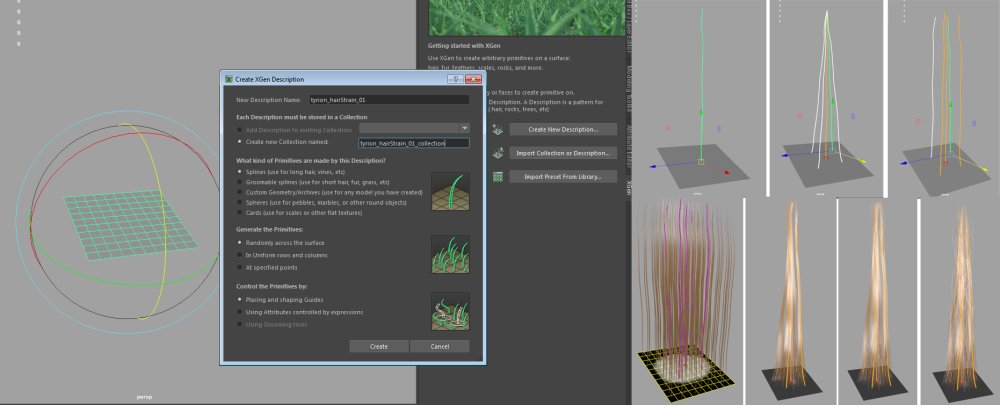

10. Hair strain grooming

Use a combination of density strains for more natural hair

I used XGen to grow long, single strain of hairs, to give me more texture space for longer curls. I had high-density strains for the thicker lower layer of hairs, mid-density strains for the basic layer of curls, and two or three strains for the external curls.

These were pretty dense but with a thinner shape. I used them to create scattering curls from the main thick ones. Finally, the last two strains were proper scattering hairs. These revealed a minimal amount of single hairs, used to create the scattering effect all over the head and the curls.

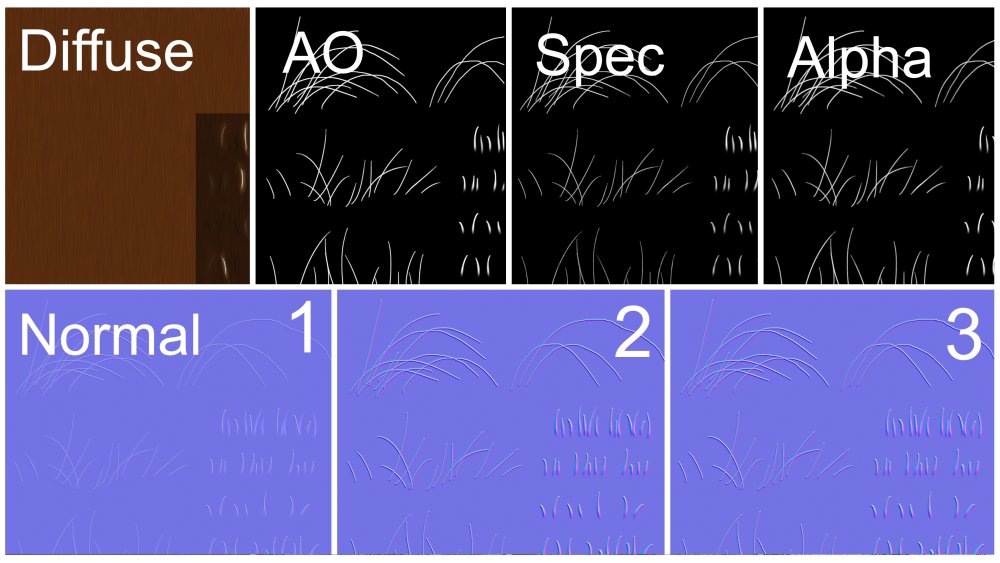

11. Hair texture baking

Add more detail to hair with texture baking

I used Arnold to bake the Diffuse and the Ambient Occlusion channels but, because the hairs were so thin, I had to use a trick to get the normal map, cavity, specular, fuzziness, and transmission textures. For the normal maps, I used Handplane Baker to project the strain onto a plane.

In Photoshop, I used a copy of the Ambient Occlusion channel to obtain another normal map layer, focused on the single hair, so I was able to get more detail on each strain overlaying this second layer. I also added some manual variation.

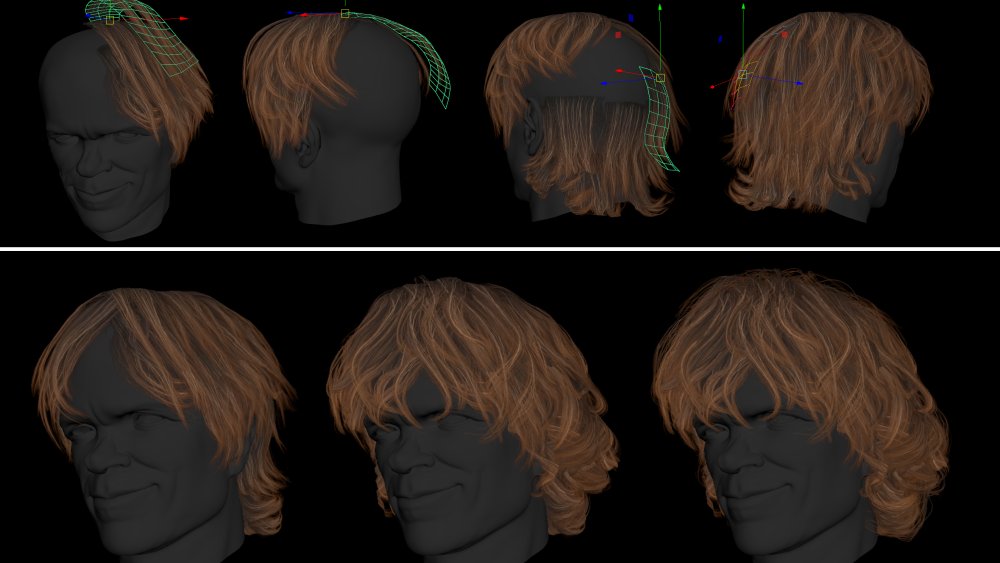

12. Placement of hair cards

Patience and attention required for hair placement

Placing hair cards is a process that you’ll have to do individually. Unfortunately there is no way around it. Of course, you can help speed up the process with some script to adjust the pivot of each strain, and organise different hair layers in groups, so that you can hide them easily, but at the end of the day, you’ll just have to work hard on it.

13. Place beard cards

Shorter hairs like those in a beard are easier to create and place

The beard, eyebrows and eyelids are easier. Because the hairs are short, you don’t have to work too hard to place every strain, but be careful with the density of your strains. I painted these textures myself in Photoshop, using the space I left in the hair texture. You’ll end up having many more polygons in the beard than in the hairs, but it’s fine.

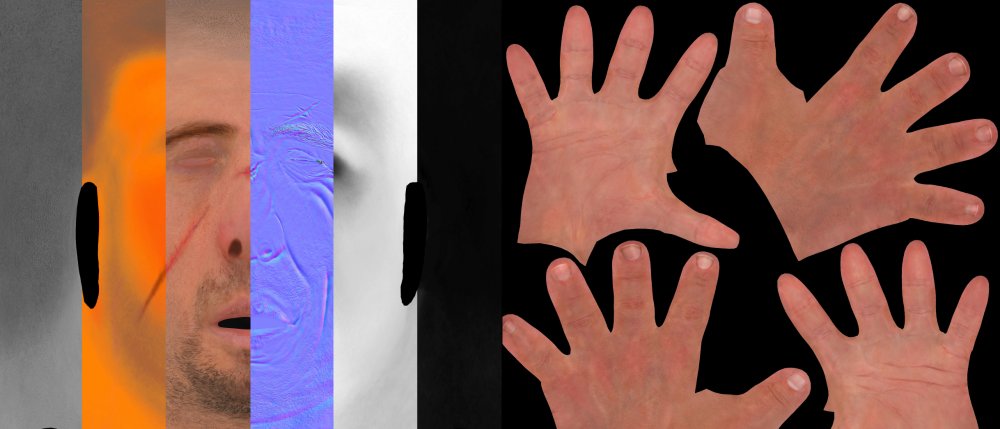

14. Texture head and hands

Bringing life to head and hands

The first pass of the Diffuse channel was done in Mari. Once I had an homogeneous layer, I moved to Painter and Photoshop to refine it, and tweak the other channels.

Ambient Occlusion and the normal map were exported via Handplane Baker but, on top of that layer, I added a pass obtained by converting the diffuse channel, so that Diffuse and Normal were more alike. All other channels – Specular, Glossiness, Subdermal, Translucency and Fuzziness – have been tweaked in Painter.

Next page: Learn how to texture your figure's clothing, add shaders and finish off your model

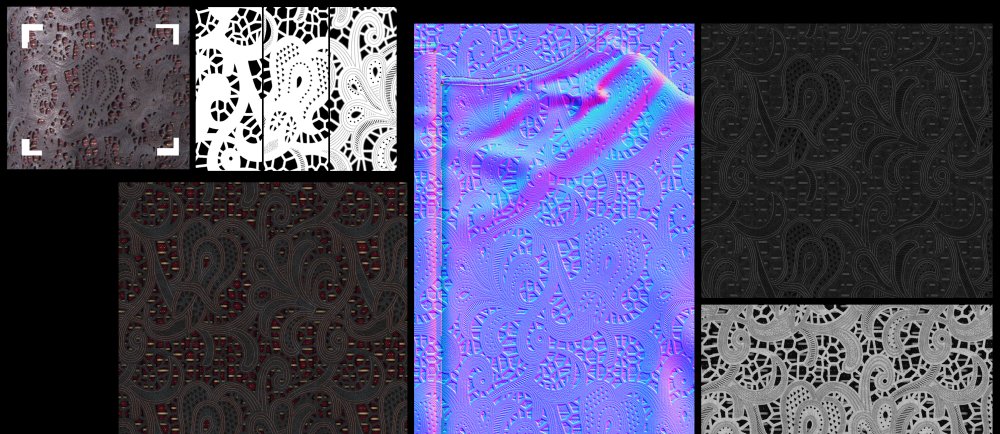

15. Create tileable pattern textures

Using tileable pattern layers to create maps for jacket texture

I took a decent photo of the pattern and imported it into Photoshop. After removing photo distortion, I traced the pattern onto a layer and made it tileable. For the normal map, I baked the folding of the sculpture from ZBrush in Handplane and then, using my tileable pattern layers, I created a normal map focused just on the jacket pattern. All other channels duplicated the Diffuse one in grayscale, before editing in Photoshop. I painted the dots and the lines in two layers to save as separate patterns to then fill the jacket texture.

16. Make sleeves and inner layer

Tileable pattern painted by hand

I painted this tileable pattern by hand and used it to fill the jacket and the sleeves. For the normal map, I baked the sculpted wrinkles with Handplane and using my three pattern layers, created an additional normal map for just the jacket pattern. This was overlaid onto the basic Normal Map channel. All other channels were from duplicating the Diffuse one in grayscale.

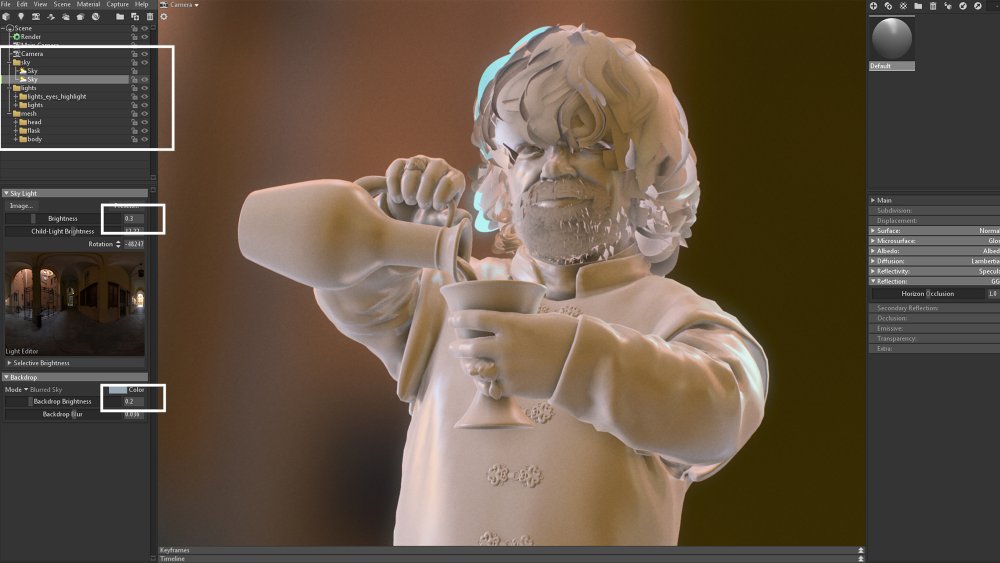

17. Marmoset file setup

Having lights assigned to groups allows for more flexibility

One way I use Marmoset to handle lighting is choosing an HDR environment, but limiting visibility to 0.3. This way, reflections are visible mainly on glossy surfaces, but not so much on rough surfaces. A good tip is if you put all lights into a group, but NOT inside the HDR sub-group, it is possible to spin the lights group and HDR independently.

18. Create the head and hands shader

Glossiness gives skin surfaces an oily finish where required

The main channels of a PBR material are the Normal Map and the Glossiness. I just set the Specular value to 0.04, but didn't add any texture. I spent some time detailing the Glossiness one instead. You'll notice that the forehead, nose tip and areas around the nostrils, lips, and ear tips are more oily than the cheeks, neck, chin, and all the surfaces where hair grows. Scatter, Translucency and Fuzziness textures need some testing to work properly. Depending on your model you could decide to use different values.

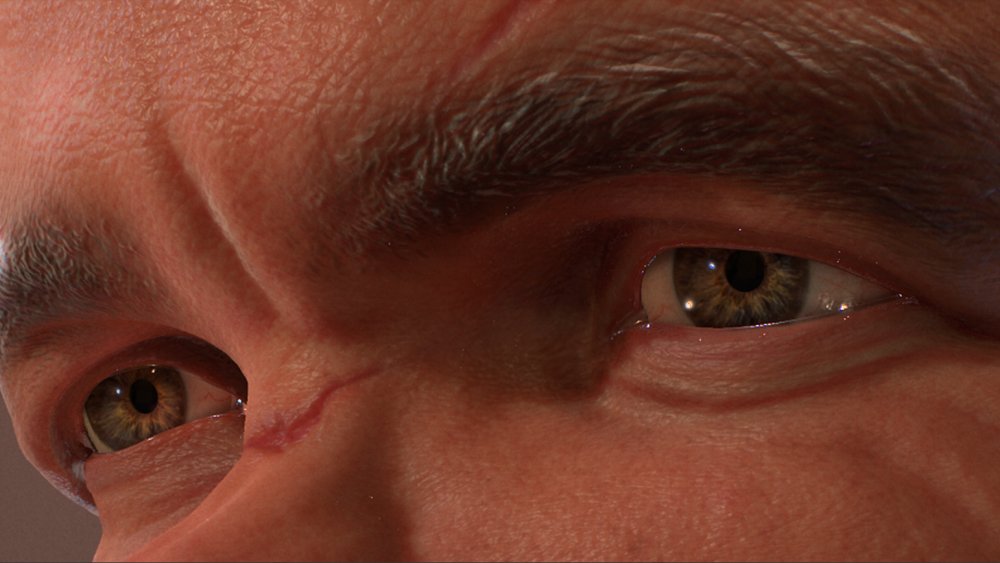

19. Make the eyes shader

Eyes need moisture so Glossiness is the tool to use

The bumping volume in front of the iris is one of the most glossy and perfect materials in nature, so Glossiness should be set at 1.0. The actual iris is almost non-reflective. The eyeball is a translucent material, and veins in the sclera are thin but the glossiness comes from the wet layer on top. This blurs the effect, making it look more neat and homogeneous.

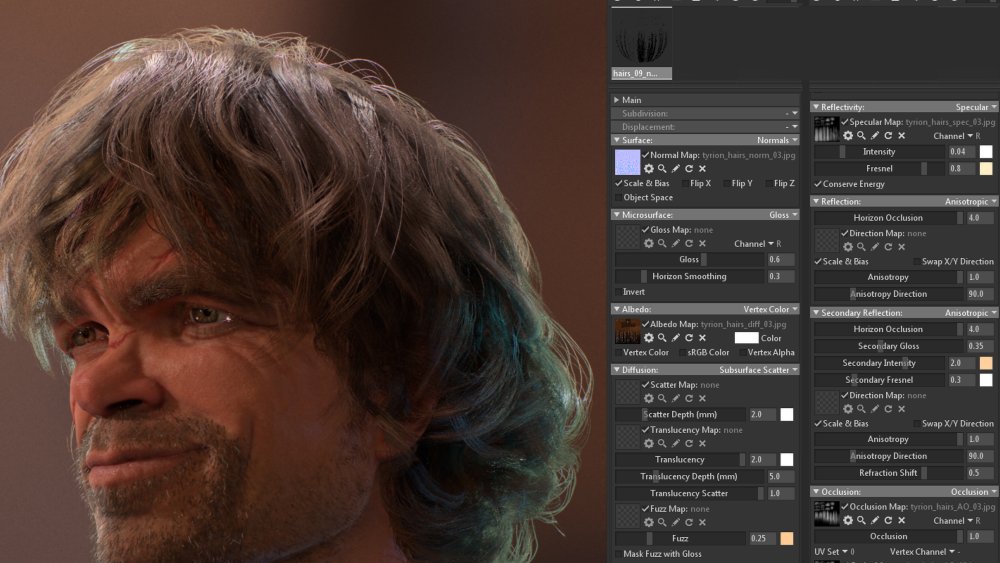

20. Add the hair shader

Remember to set both your reflection channels to Anisotropic

I had to do some experiments with the hair. I initially set up my Specular channel with a Microfibre algorithm, but it wasn’t the result I was hoping for. I ended up using the Subsurface Scatter, like the face and the hands. Using the Ambient Occlusion channel, together with the cavity map, helped break the flatness of the Specular highlight along the even polygons. Using a secondary reflection gave the best result on the hairs, more than on the other materials. Remember to set both your reflection channels to Anisotropic.

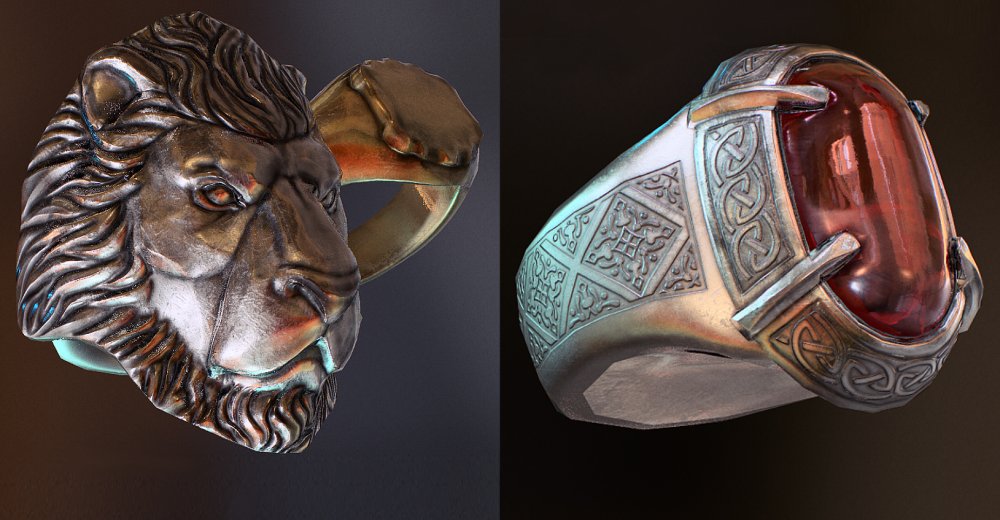

21. Rings shader

Adding some fingerprint marks in the Glossiness channel helps the final result

The rings were an easy setting. The most important value came from the tone of reflectivity, which can be found online. Everything else is a picky use of Normal Map and Glossiness to create variations along the surface. Adding some fingerprint marks in the Glossiness channel helps the final result. Just remember to model the ruby socket, and then place the gem into it so that they do not intersect. If you model this ring as a unique object, the ruby will end up looking transparent.

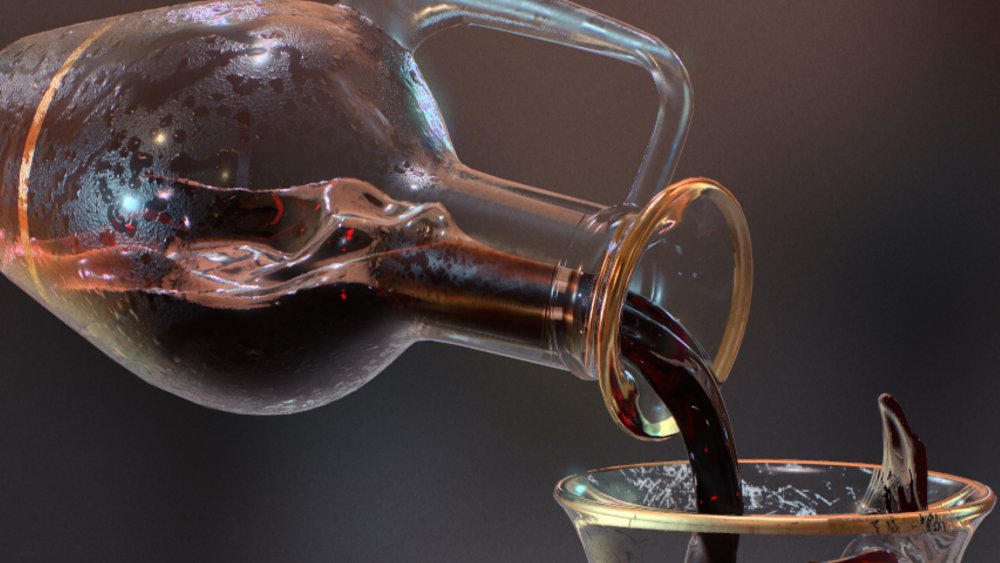

22. Glass shader

Creating a duplicate mesh with a different process produced good glass

The best way I found to obtain decent glass was duplicating my whole mesh for the glass and flask (and ruby), and inverting the normals of each polygon. But this means values of refraction will be calculated twice. Also, in order to make this material more interesting, I suggest adding a lot of details like fingerprints, scratches and water drops on top of it.

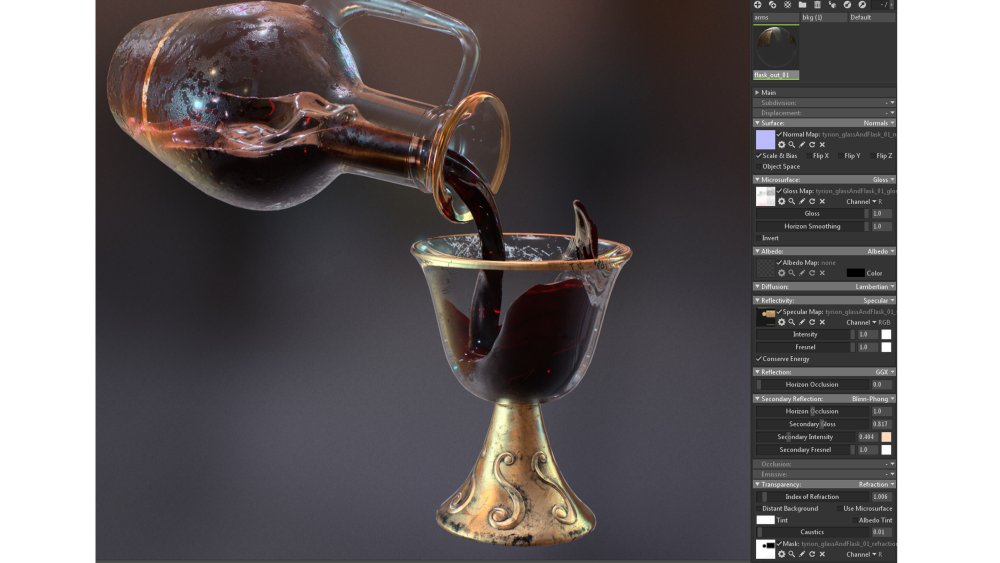

23. Wine shader

Changing the colour gradient for more realism

I treated wine the same way as the glass. The only difference is that red wine’s transparency gets higher near the surface. That’s why, in Photoshop, I painted a refraction texture, gradually turning to black as it got closer to the bottom of the flask and the glass. Also, in order to make it more believable, there is some noise in it, so that the final result looks thicker. But let’s face it; it still looks like black cherry syrup! I’ll keep testing Marmoset to see if I can find a better way to handle these refractive shaders.
