Scatter trees with V-Ray

[Rss Bot 1]

Adding details to your scene is always the way to go when you want to achieve more realism in your 3D art, and thankfully there are many plugins available to help you achieve exactly what you want. In this case, imagine you have a home surrounded by a large forest.

• Get started with V-Ray

Many tools may come to mind for building this scene, including using free textures, but the one we are going to use is 'free' as part of render engine V-Ray. This time you can add the forest using VRayInstancer, which is a tool that not many use. It has its limitations but it hasn't ever failed me. So let's learn how to use it to scatter trees for a forest scene.

01. Get the models ready to use

Whatever models you use, make sure you have pivots in their bases

The first thing you need to do is source the models you plan to use. In this case I've selected two models from the CGAxis library. It's always so important to keep in mind that you can make them proxy in order to have fewer polygons in your scene.

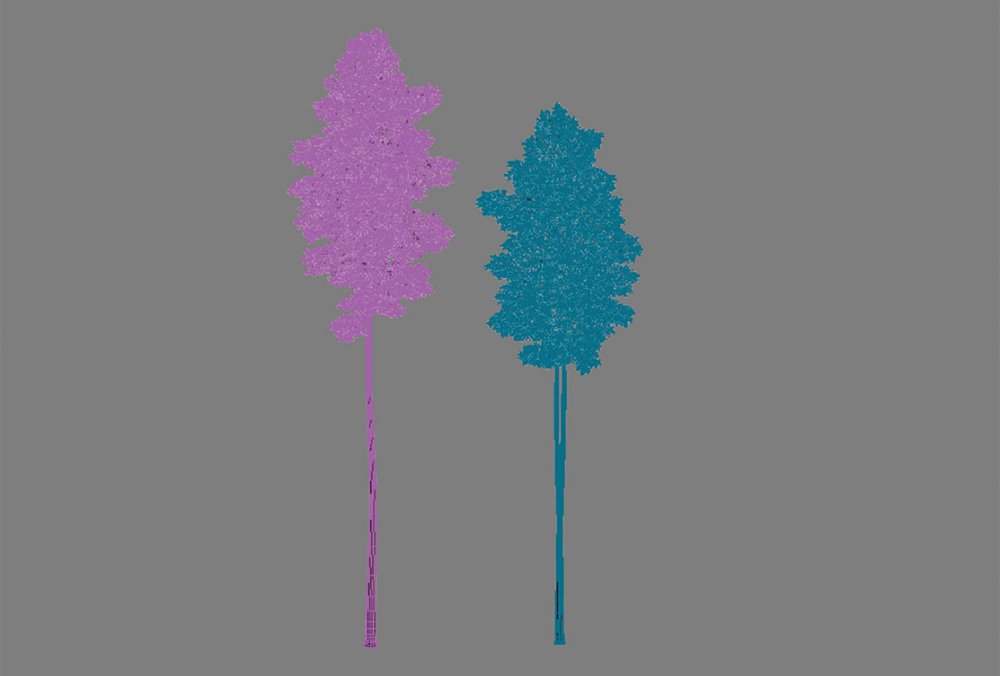

Another important thing is to always have pivots in the base of your models; in this case you have two trees and you need the pivot in their bases, because once you scatter them on a surface the scatter will take that base. When the pivot is not located in the base, you can get strange results, such as half trees scattered all over the scene. So let's make the models proxy and set the pivot on their bases.

02. PF Source and VRayInstancer

Don't forget to name your PC source and instancer

Once you have your models ready, it's time to add all the necessary tools to create the forest in the back of your scene. First of all you are going to create a PF source: to do so go to the Create tab and in Geometry use the roll-out menu and select Particle Systems. From there, select PF Source. Once placed, name it – in this case mine is called 'PF 001 Front Trees'. Naming is important because that way you can have a lot more control when you need to turn off your particle generators.

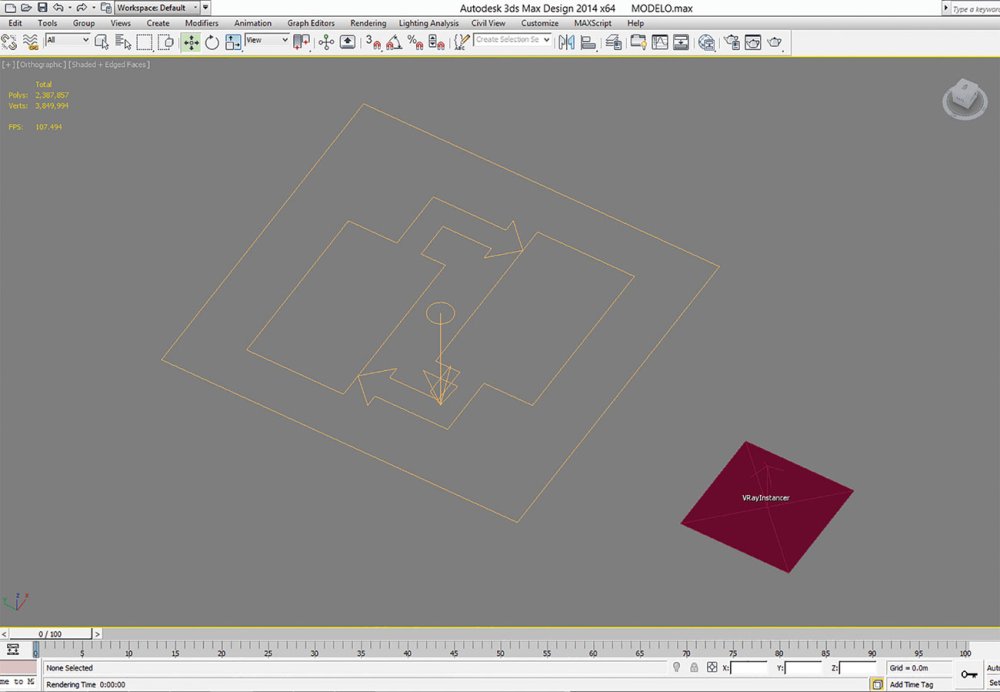

The next step is to add your VRayInstancer; again head to the Create tab, then select Geometry and in the roll-out menu choose V-Ray. This is where you are going to find your VRayInstancer. Place it in the scene and name it 'VRayInstancer Front Trees', which is again named for organisational purposes.

03. Connect all the elements

You can add more source objects for extra variety

Now it's time to connect all your tools to make it work properly. First select your VRayInstancer, go to the Modify tab and in Particles add 'PF 001 Front Trees' (the one you created). After this, in Source Objects add both of your tree models. In this case you can add one, but in order to get more variation I decided to add two (you can add as many as you like).

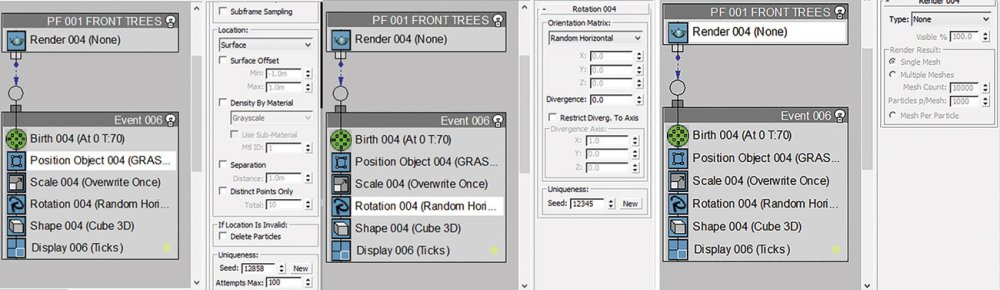

Now it's time to tweak the parameters from your PF Source (PF 001 Front Trees). Select it and in Modify you will find Particle View, open it and you will find more options. First of all, erase Position Icon and Speed as you are not going to need them, and instead add Position Object and Scale. In Position Object add the base of the forest mesh. This will use that base as the plane where it will be scattered. In Birth set Emit Stop to 0 and Amount to 70, and in Scale set the Scale Variation to 8%. Now hit render and you will have your first result.

04. Final details

Slight changes in your settings can make all the difference to your finished scene

In your initial result you should have a spread of trees, that aren't quite right, and you'll also see some weird elements such as big white boxes. Let's fix all that and set your final settings. First of all, inside the particle view in your PF Source, select Render 004 and in Type set None. This will make the weird boxes you can see in your render go away.

Now let's go to the Position Object settings. In Uniqueness set the Seed value to 12,858. And finally in Rotation in Orientation Matrix, set it to Random Horizontal. With these modifications you are going to get the result as in the final image (at the top). What you've done was the process for the frontal trees, but you can do the same for the background ones. Try it in your scenes, and not only with trees – this method can have as many uses as you like.
